Either create a new query statement by clicking  or use an existing statement. This is used to reference the query in a Fetch Query Result action cell if you are using a SELECT statement to retrieve information from a table into your script.

Note: this is useful if, for example, your script has separate routes to the same Execute Query action cell, where the different routes require the query to be run with different parameters or to return different values.

Use this to select the data source identifier for the database containing the table against which the query will be run.

Enter an SQL query string, either by typing in the query here or using a string variable in which the query has been predefined. Standard SQL syntax is used. For example,

SELECT name, result, comments FROM customer  WHERE postcode = ‘SL6’

where name, result, comments and postcode are the names of columns in the table customer.

The values in the columns name, result and comments are to be returned to the FLOW script.

You may use ? characters in a query statement to act as placeholders for values you are binding to your FLOW script but you cannot use them for specifying table and column names. For example, the query statement:

SELECT name, results, comments FROM customer WHERE postcode = ‘? ’

is valid, but SELECT ?, ?, ?  FROM customer WHERE postcode = ‘?’ is not.

You must specify variables in the Query Parameter list in the order in which they will be used to replace the ? placeholders in the query statement (see below).

Select this to execute the query. Alternatively, leave this clear and execute the query later in the script using the Execute Query action cell.

If the query is run, the results and the number of rows found are stored in memory and also to variables configured in the 'Query Result' list of this action cell (see below).

The results held in memory can be accessed by the Fetch Query Result action cell.

(Optional) Enter an integer variable to hold the number of result rows returned by the query if it is executed.

Enter a values in the field above the list (as a literal value preceded by=, or a variable of the correct type), and then click ADD.

Enter a variable of the correct type in the field above the list and then click ADD.

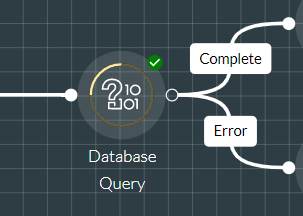

This is taken if the query has been created successfully (and executed, where relevant).

This is taken if the query has not been created successfully (or executed, where relevant).
